CRL Medium Duty 105º No Hold Open Overhead Concealed Closer with "A" End-Load Hardware Package

• A Center-Hung End-Load Hardware Package for Doors with 1" Deep Top Rails
• For Doors with 1" (25 mm) Top Rail Depth
• Adjustable Dual-Purpose Bottom Pivot Set for Floor or Threshold Mounting
• U.L. Listed with a Five Year Limited Warranty

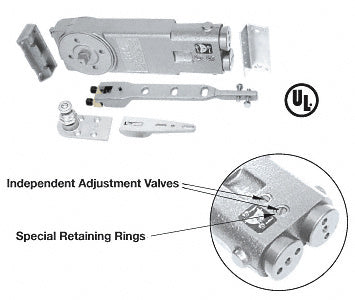

These CRL Overhead Door Closer Kits consist of a Medium Spring Size Door Closer, Mounting Clips, Type "A" End-Load Arm, and a "DP" Adjustable Dual-Purpose Bottom Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90 and 105º Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4" x 4" (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options and Door Closer Bodies with Mounting Clips and Overhead Concealed Door Closer Accessories are available.

Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.

Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
