CRL Dual-Purpose Floor or Threshold Mounted Pivot for Use with 1" Deep Bottom Door Rail Applications
Roll over image to zoom in Click on image to zoom
CRL Dual-Purpose Floor or Threshold Mounted Pivot for Use with 1" Deep Bottom Door Rail Applications

CRL Dual-Purpose Floor or Threshold Mounted Pivot for Use with 1" Deep Bottom Door Rail Applications

CRLSKU: CRL8010DP
Price:
$29.64
 More payment options

Description

  • Dual-Purpose Pivot Mounts Directly to Floor or Threshold
  • 3/16" (5 mm) Height Adjustment
  • For Use with Both End-Load and Side-Load Arms

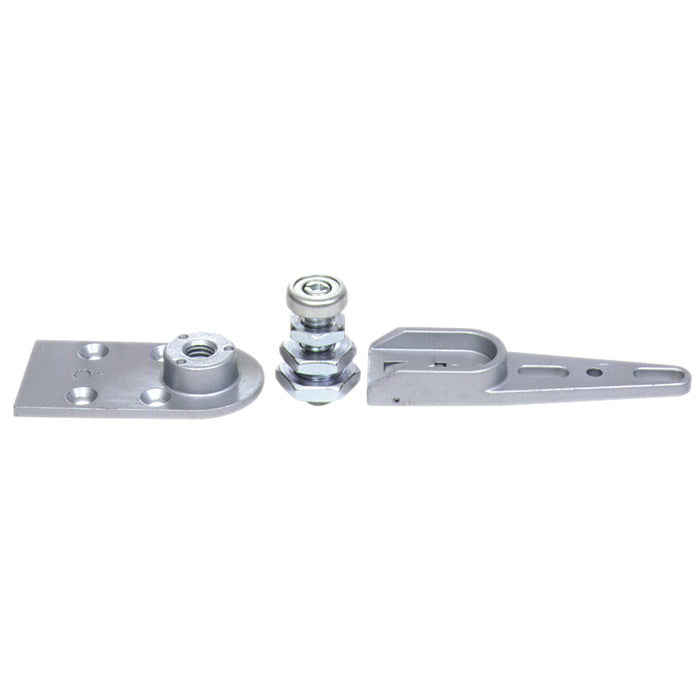

This CRL Adjustable Dual-Purpose Bottom Pivot Set is for use with 1" (25 mm) deep bottom door rail applications, and is the standard Bottom Pivot Set supplied with our 'S' Type and 'A' Type Door Closer packages. It can be used with the base plate for floor mounting or attached directly to the threshold. A 3/16" (5 mm) height adjustment is possible with the door on or off the pivot. This Pivot is suitable for either end-load or side-load center-hung applications. Maximum weight capacity is 200 lbs. (90.7 kg).

Specifications

Bottom Door Clearance Adjustment 3/16
Bottom Door Rail Depth 1
Brand Jackson
Door Weight 200
Handing Non Handed
Mounting Type Floor or Threshold
Pivot Bottom Yes
Recommended Door Type Aluminum Store Front
Type End-Load Arm or Side-Load Arm
