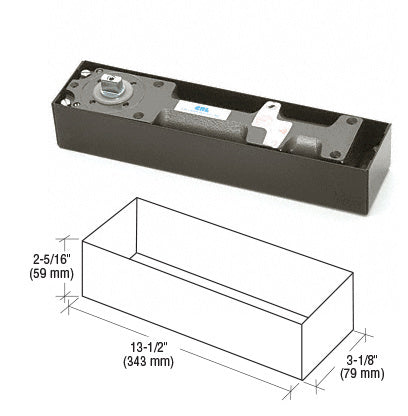

CRL 105º Hold Open Size 4 Spring Heavy Weight Floor Mounted Door Closer

• The Perfect Door Closer to Support CRL's Door Rail System
• Interchangeable Spindle Heights
• Independent Closing and Latching Speed Adjustments
• 5 Year Limited Warranty
• UL Listed

The CRL8500 Series Floor Mounted Door Closer has a heavy weight capacity capable of handling doors weighing up to 800 lbs. (363 kg). The Door Closer is available in either 90º or 105º Hold Open or No Hold Open models in three spring sizes to accommodate most standard installations.

The supplied 1/8" (3 mm) collar height Standard Spindle is interchangeable with other available Spindles to accommodate different finished floor heights. Accessories such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entryway due to over-extension of maximum allowable door swing.

SPECIFICATIONS:
Maximum Door Weight: 800 lbs. (363 kg)
Maximum Interior Door Width: 54" (1.37 m)
Maximum Exterior Door Width: 48" (1.22 m)
