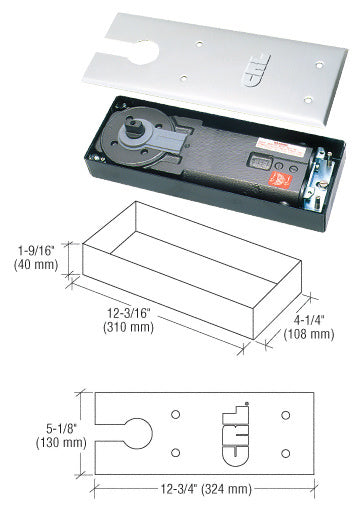

CRL Medium Duty 90º Hold Open Low Profile Floor Mounted Closer

• 264 Lb. Capacity, 42" Doors
• Low Profile 1-9/16" (40 mm) Depth
• Interchangeable Spindle Heights
• 5 Year Limited Warranty
• UL Listed

These CRL Shallow Depth Floor Mounted Door Closers are preferred for many types of installations because they only require a shallow 1-9/16" (40 mm) cut-out in the floor. This is especially important on floors above the ground floor. The shallow cut-out leaves enough remaining floor under the Door Closer to support the door weight. The Door Closer has separate valves to control closing and latching speeds. Both 90º and 105º Hold Open and No Hold Open models are available.

The 1/8" (3 mm) collar height Spindle is supplied with the door closer, providing a 5/16" (8 mm) clearance from finished floor to door bottom. Optional Spindles to accommodate different finished floor heights are also available. Other accessories, such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entryway due to over-extension of maximum allowable door swing.

SPECIFICATIONS:
Maximum Door Weight: 264 Lbs. (120 kg)
Maximum Interior Door Width: 42" (1.07 m)
Maximum Exterior Door Width: 38" (965 mm)
