CRL European Patch Door Kit for Double Doors for Use with Fixed Transom - Without Lock

• Most Popular Design
• For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
• Available With or Without Locks

CRL PHE6 European Double Door Kits come with all the hardware to complete a pair of free-swinging doors with fixed transom, (except glass and additional supports for the fixed transom). Pivot setback is 2-9/16" (65 mm). Floor closer with tapered spindle (ordered separately) may be used with this Kit.

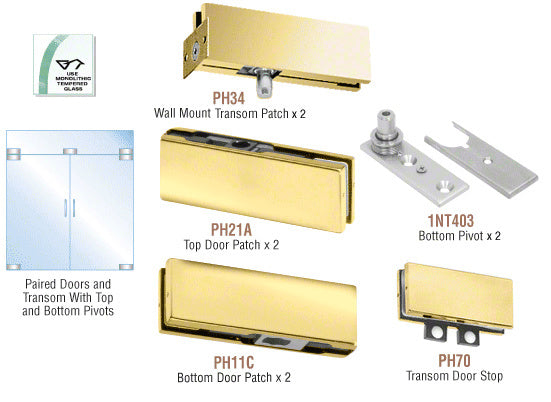

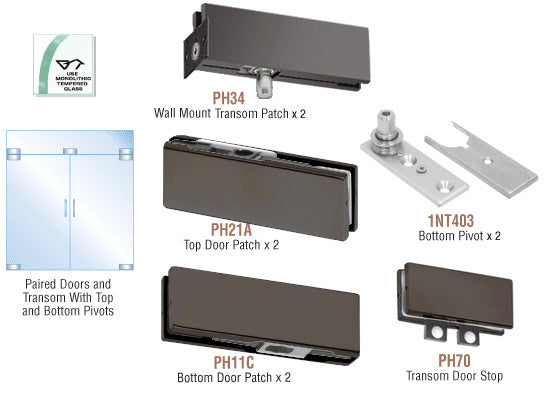

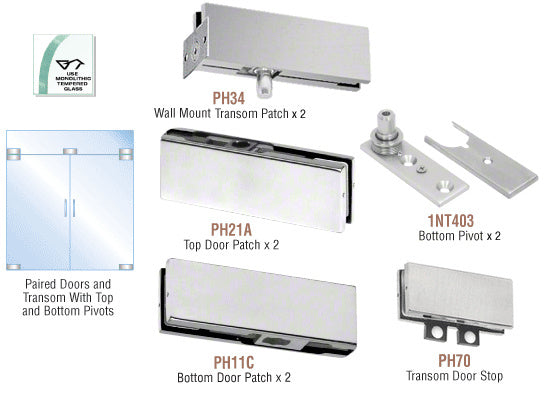

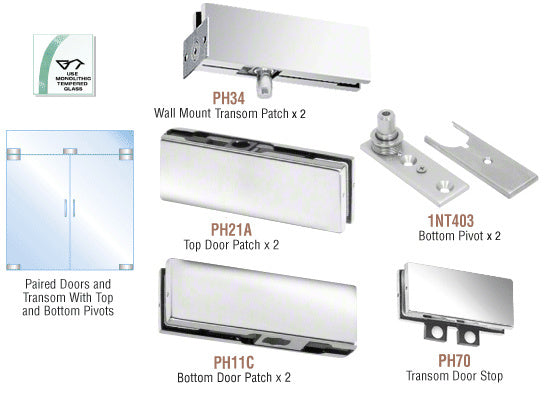

Kit Contains:

• 2 - PH34 Wall Mount Transom Patches

• 2 - PH21A Top Door Patches

• 2 - PH11C Bottom Door Patches

• 1 - PH70 Transom Door Stop

• 2 - 1NT403 Bottom Pivots

• Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass. (Holes and notches are required in the glass.)

  Kits with locks also come with two each Cat. No. EUR205 patch locks. Cylinders, thumbturns, and keepers are ordered separately.

  NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
