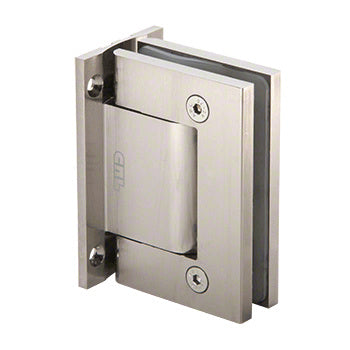

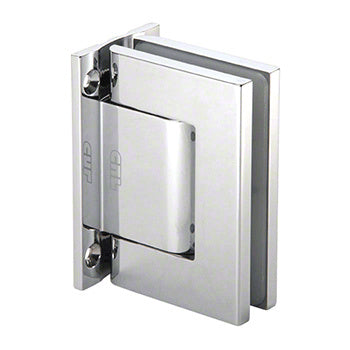

CRL Oil Dynamic Full Back Plate Wall-to-Glass Hinge - Hold Open

• For Self-Closing Glass Doors from 5/16" to 9/16" (8 to 13.52 mm) Thick
• Designed for Use on Interior Doors (Not for Shower Doors)
• Aluminum Body in Your Choice of Several Finishes
• Adjustable Closing Speed
• A Great Alternative to Floor Closers and Patch Fittings
• Use Monolithic Tempered Glass

This CRL Full Back Plate Wall Mount Hinge swings in and out a full 90 degrees, with stops at 0 degree, +90 degree, and –90 degree. Closing speed can be adjusted. For doors up to 39" (1 m) wide. Maximum weight per two hinges is 220 lbs. (100 kg).

The Oil Dynamic Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. Designed for use on interior doors leading into the bathroom area (not for Shower Doors), Oil Dynamic allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.

Properly mounted, two Oil Dynamic Hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 220 lbs. (100 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, with positive stops at 0 and 90 degrees, giving you even more design freedom.

The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Oil Dynamic has been subject to strict testing (over 1 million cycles), assuring long lasting service.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90 Degrees Inwards and Outwards (Except H8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing from 0 to 80 Degrees
Special Feature: Holds Open at 90 Degrees; Adjustable Closing Speed. No Hold Open Models Available (Except H8060 Model).
Cut-Out Required

Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass; Hex Screws
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)

NOTE: Do not use more than two hinges on one door.
