CRL Brushed Stainless Laguna Pivot Door System for Use With Free-Swinging Doors With Top and Glass Transom Mount Pivot

• All 316 Alloy Brushed Stainless Steel Construction
• Ideal for Interior Room Applications
• For Use with 3/8" (10 mm) or 1/2" (12 mm) Tempered Glass
• Comes with All Fasteners Needed for Either Flush Mount (Countersunk) or Surface Mount (Straight Hole) Glass Fabrication

Our CRL Laguna Series Hardware brings a contemporary look to interior home or office partitions. Made of high-grade 316 alloy stainless steel, it will give years of reliable function and modern beauty to your projects.

The CRL Laguna Pivot Door System can be used with free-swinging doors, or doors controlled by floor mounted door closers. The hardware can be ordered in sets or by individual components.

CRL provides you with all of the Glass Fasteners for either flush mounting, which requires a countersunk hole, or surface mounting, where a straight hole is needed. The Glass Fasteners will accommodate either 3/8" (10 mm) or 1/2" (12 mm) tempered glass. Laminated glass cannot be used with this type of hardware.

Standardized sets allow easy planning and purchasing for a number of basic configurations. Available accessories give you the opportunity to customize the standard sets to accommodate the most imaginative designers.

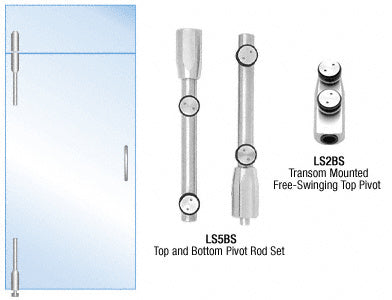

The LS24BS Hardware Set consists of:
1 each LS2BS Transom Mounted Free-Swinging Top Pivot
1 each LS5BS Top and Bottom Pivot Rod Set
(Closers or Bottom Pivots are sold separately.)

NOTE: Care should be taken when using this system in exterior applications to ensure that air and water infiltration can be minimized.

For additional information, contact CRL Technical Sales Department.

System Limitations:

• Maximum Door Weight: 176 Lbs. (80 kg)

• Maximum Panel Width: 47-1/4" (1.2 m)

• Maximum Panel Height: 98-7/8" (2.5 m)
