FHC Magnalink Egress Device - FS Exterior Short Height Pull Handle - Metal Door Mount
Roll over image to zoom in Click on image to zoom
FHC Magnalink Egress Device - FS Exterior Short Height Pull Handle - Metal Door MountFHC Magnalink Egress Device - FS Exterior Short Height Pull Handle - Metal Door Mount Additional Image - 1FHC Magnalink Egress Device - FS Exterior Short Height Pull Handle - Metal Door Mount Additional Image - 2

FHC Magnalink Egress Device - FS Exterior Short Height Pull Handle - Metal Door Mount

FHCSKU: ML100FS3MPSB
Finish: Satin Brass
Handing: RHR
Access: Exterior Retainer Plate
Price:
$11,159.28
 More payment options

Description

Features

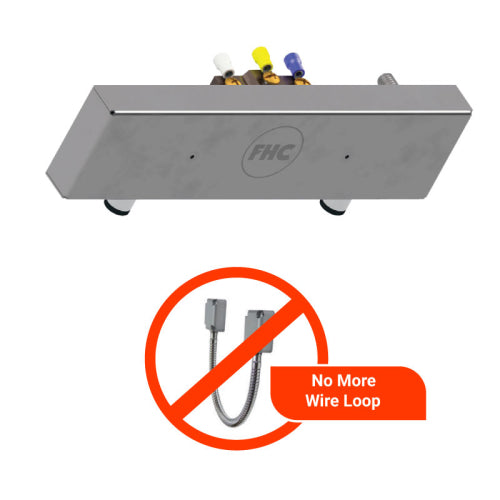

  • No Unsightly Wire Loops

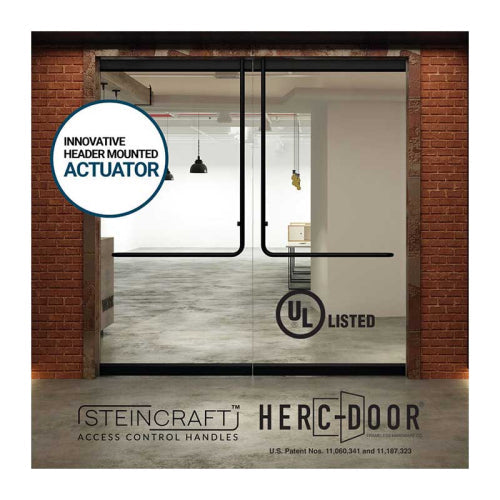

  • Handle Operation is Magnetically Coupled to the Header Mounted Actuator, Creating An Invisible Connection that Eliminates the Need for Electrical Current in the Door Handle
  • Easy to Electrify, Only 2 Wires are Required for Connection to the Header Mounted Stop/Actuator
  • Tamper-Proof
  • 3 Terminals Permit Normally Open and Normally Closed Connection
  • High Current Handling Capacity Enables Direct Operation of Magnetic Locks
  • 24VDC/VAC 4A (Resistive) SPDT Switch Rated at 1,000,000 Mechanical Operations
  • Switch Has a Built-In Magnetic Blowout Feature That Protects the Contacts from Arc Erosion
  • Easily Interfaces With Complex Security Systems
  • Door Handle Has an Exact Appearance Match With FHC Steincraft „¢ HP100 Panic Handles
  • All Steincraft „¢ HP100 Exterior Pull Configurations and Finishes Are Available
  • System Uses SDC® Hi/Shear® Concealed Electromagnetic Locks and SDC® Low Voltage Power Supply 1 and 2 Amp 12/24VDC Class 2
  • Finish/Color: Satin Brass, Polished Stainless Steel, Polished Brass, Oil Rubbed Bronze, Matte Black, Brushed Stainless

Specifications

Handing RHR, LHR
Exterior Handle FS
Mount Option Metal

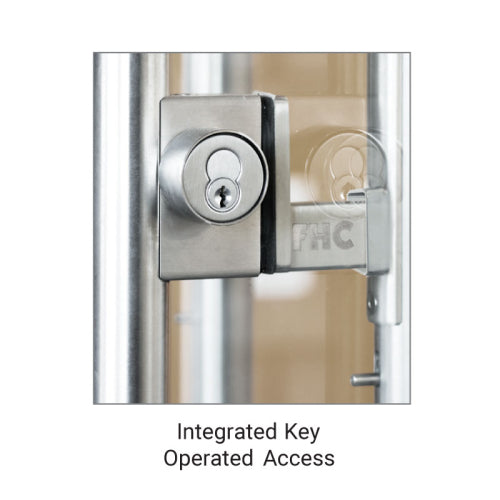

Locking Option Retainer Plate, Keyed Access
Finish/Color Satin Brass, Polished Stainless Steel, Polished Brass, Oil Rubbed Bronze, Matte Black, Brushed Stainless

Downlodable Documents

  • Free Shipping for Orders Over $150, Excluding Oversize Items
  • Economy Standard: Ships in 5-15 Business Days - $11.73
  • Priority Standard: Ships Next Business Day, Arrives in 3-5 Days - $23.47
  • Express: Before 1PM EST, Ships Same Day, Arrives in 1-2 Days - $91.81
  • Oversize Items (Longer Than 36"): Ships Next Business Day, Arrives in 3-5 Days - $29.95
  • Shipping to Contiguous US Customers. Alaska and Hawaii May Incur Additional Charges
  • For More Information View Our Policy Page
  • Return Any Items in their Original Package Within 30 Days of Receipt
  • Items Must be in Original Condition. Any Products Damaged or Modified Will Not Be Credited
  • Refunds Exclude Shipping Charges and Restocking Fees
  • Contact us Prior to Returning Any Items We are Unable to Refund Unauthorized Returns
  • For More Information or to Obtain Return Authorization, Visit Our Policy Page
