CRL Patch Connector with Support Fin Bracket
Roll over image to zoom in Click on image to zoom
CRL Patch Connector with Support Fin BracketCRL Patch Connector with Support Fin BracketCRL Patch Connector with Support Fin BracketCRL Patch Connector with Support Fin BracketCRL Patch Connector with Support Fin Bracket

CRL Patch Connector with Support Fin Bracket

CRLSKU: PH81A
Finish:: Satin Anodized
Price:
$156.18
 More payment options

Description

  • For 3/8" or 1/2" (10 or 12 mm) Glass
  • Use Monolithic Tempered Glass

This CRL Patch Connector with Support Fin Bracket is used for joining a two lite glass junction that needs extra support to achieve the required structural strength. The support fin glass should be sized to approved criteria (refer to GANA or Manufacturer's Manual), and secured to the ceiling with a PH94 Ceiling Mounted Support Fin Bracket.

GLASS FABRICATION REQUIRED:
Six 3/4" (19 mm) Diameter
Holes and Corner Notch

COMES WITH:
Template and Instructions

Product Warning:

These fittings are not for use with laminated glass.

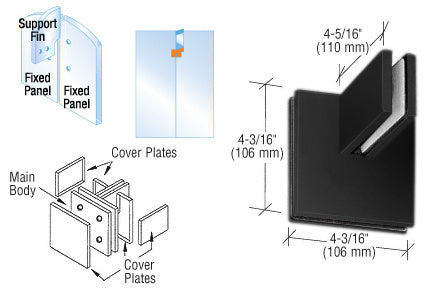

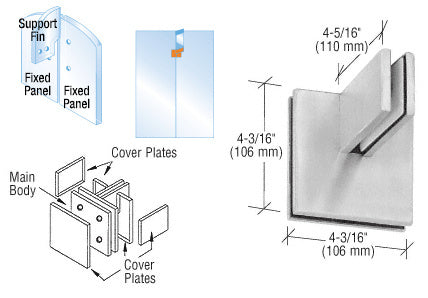

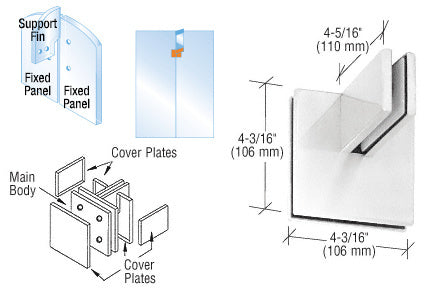

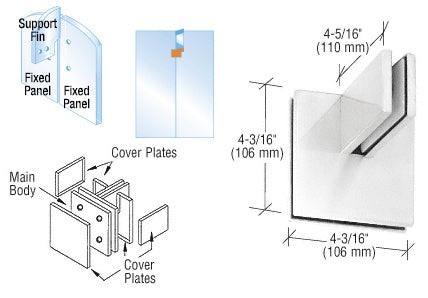

Specifications

Glazing Thickness 3/8 in., 1/2 in. (10 mm, 12 mm)
Height 4-3/16 in. (106 mm)
Width 4-3/16 in. (106 mm)
Depth 4-5/16 in. (110 mm)
Finish/Color Satin Anodized, Polished Brass, Brushed Stainless Steel, Matte Black, Polished Stainless Steel
