Rixson® 28 Series Center-Hung Right Hand 105º Selective Hold Open Floor Mounted Closer - Complete Package

• For Exterior or Interior Doors
• Selective Hold Open Feature
• 350 Lb. (159 kg) Capacity
• Built-In Positive Dead Stop
• Adjustable Backcheck
• ANSI 156.4 Grade 1
• 10 Year Limited Warranty
• UL Listed

Rixson® Floor Mounted Door Closers are a time proven product known for reliability and long-lasting service-free life. Floor Closers provide the best mechanical means of controlling a door. They produce an 85% closing force-to-opening force ratio, thereby allowing for lighter opening forces and yet maintaining control of the door. The weight of the door is supported entirely by the bottom arm, which is directly connected to the floor closer spindle. This design allows these closers to handle the rigors of high traffic volume and heavier than average doors.

Rixson® Floor Mounted Door Closers are available from CRL with multiple features and options, such as Selective Hold Open, Built-In Positive Dead Stop, Adjustable Hydraulic Backcheck. Other optional features, finishes, and accessories are available upon request.

FEATURES AND SPECIFICATIONS:

• Single Acting, Handed

• Selective Hold Open (SHO) Stocked

• Separate and Independent Valves for Closing Speed, Latching Speed, and Backcheck Adjustments

• Built-in Positive Dead Stop Prevents the Door From Swinging Beyond the Opening Degree Specified. (Stock 90º and 105º)

• "PH" Models Meet ANSI A117.1 Physically Handicapped 8.5 Lb. A.D.A. Opening Force

• 350 Lb. (159 kg), 48" (1.22 m) Width Capacity.

• Furnished with Wood and Machine Screws

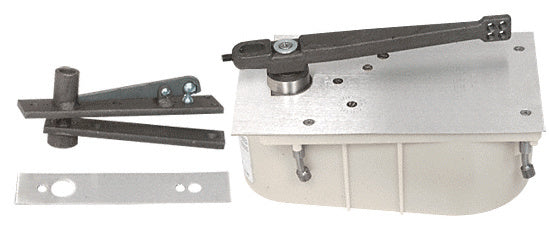

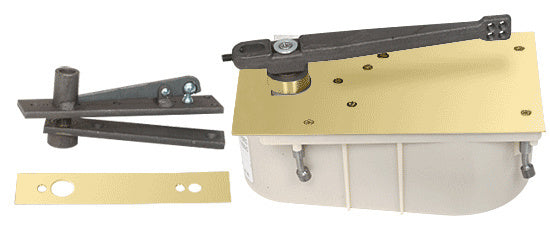

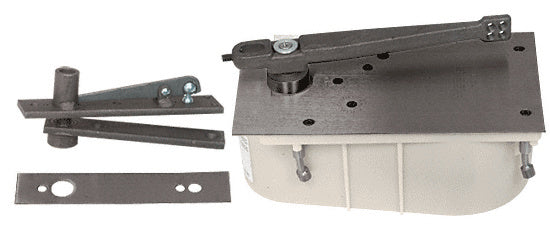

  CONTENTS:
  28 Series Center-Hung Closer Body
  253000 Cement Case
  284720 Finished Cover Plate
  282026 Bottom Arm
  340 Center-Hung Top Pivot

  The following components are included to complete the job:
  253000 Floor Closer Cement Case
  284720RHCloser Cover
  282026 Bottom Center-Hung Arm
  340 Top Center-Hung Pivot

  Additional finishes and accessories are available upon request for quotation.
