CRL Regular Duty Single Long Arm Spider Fitting Column Mount
Roll over image to zoom in Click on image to zoom
CRL Regular Duty Single Long Arm Spider Fitting Column MountCRL Regular Duty Single Long Arm Spider Fitting Column Mount

CRL Regular Duty Single Long Arm Spider Fitting Column Mount

CRLSKU: PMR1LBS
Finish:: Brushed Stainless Steel
Price:
$79.24
 More payment options

Description

Product Details
  • Configuration: Single
  • Door Opening Height (Inches): 108
  • Door Opening Width (Inches): 36
  • Door Type: Butt Hung Door
  • Finish/Color : Should just be Finish
  • Frame Type: Butt Hung
  • Handing: Left Hand
  • Overall Frame Height (Inches): 109-1/2
  • Overall Frame Width (Inches): 39
  • Trim (Inches): 1-1/2
Product Overview

  • For Use with Glass Up to 1/2" (12 mm)
  • Complete with Hardware to Mount to Post or Column
  • Glass Attachments Sold Separately
  • Use Monolithic Tempered Glass

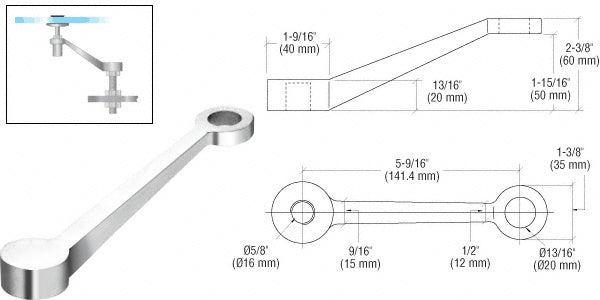

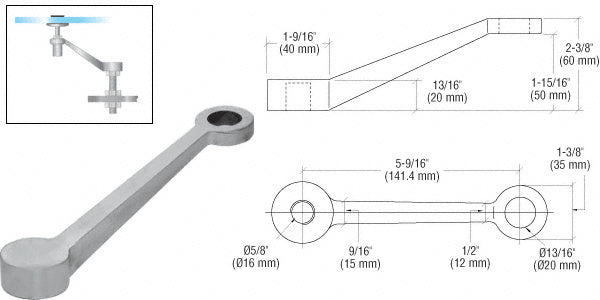

This CRL Long Arm Fitting is used to attach a single glass panel to a structural end post and match other V-fitting arms. Comes with a M16-2.0 x 99.5 mm (3-7/8") stainless steel threaded stud and three matching nuts with washers. Replacement Stud Set is available.

For companion fitting use Cat. No. PMR2VBS, PMR2VPS, PMR3BS, PMR3PS, PMR4BS or PMR4PS Fittings.
Installation Instructions
CRL Regular Duty Spider Fittings

Spider Fittings Installation Instructions

CAD Drawings - pdf
PMR1L Detailed CAD Drawings.pdf

CAD Drawings - dwg
PMR1L Detailed CAD Drawings.dwg

Engineering & Test Reports
CRL Stainless Steel Spider Fittings Test Report

Specifications
