CRL Wall Mounted Transom Patch With 1NT300 Insert
Roll over image to zoom in Click on image to zoom
CRL Wall Mounted Transom Patch With 1NT300 InsertCRL Wall Mounted Transom Patch With 1NT300 InsertCRL Wall Mounted Transom Patch With 1NT300 InsertCRL Wall Mounted Transom Patch With 1NT300 InsertCRL Wall Mounted Transom Patch With 1NT300 InsertCRL Wall Mounted Transom Patch With 1NT300 InsertCRL Wall Mounted Transom Patch With 1NT300 Insert

CRL Wall Mounted Transom Patch With 1NT300 Insert

CRLSKU: PH34A
Finish:: Satin Anodized
Price:
$65.14
 More payment options

Description

  • Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
  • For 3/8" or 1/2" (10 or 12 mm) Glass
  • Use Monolithic Tempered Glass

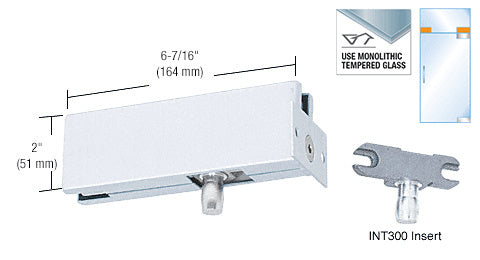

The CRL PH34 Wall Mounted Transom Patch is used to support a transom from a side jamb. It includes the INT300 Insert for mounting a door with the CRL PH20A or PH21A Top Door Patch Fitting. The Insert can also be moved on the non-hinged side, allowing for a double swing door. A INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also a INT305 Transom Patch Keeper Insert can be installed for use with an AMR205 Lock when used for top of the door installation.

If the weight of the transom exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight. Use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions


Specifications

Finish/Color Satin Anodized, Polished Brass, Brushed Stainless Steel, Black Bronze Anodized, Matte Black, Polished Stainless Steel, Satin Brass
Glazing Thickness 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type 1NT300
Mounting Type Wall Mount
With Insert Yes

Downlodable Documents

Templates

Template gc-ph34.doc
