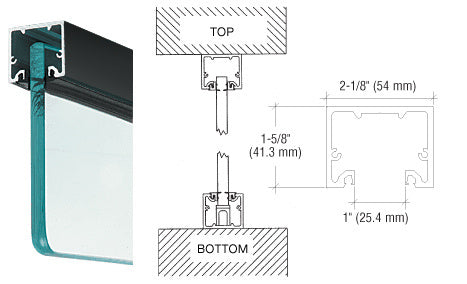

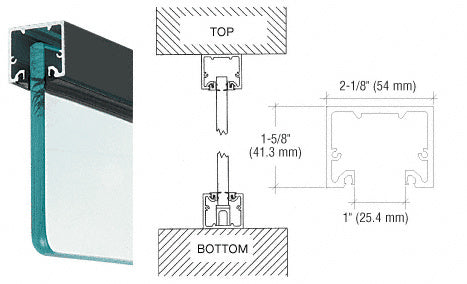

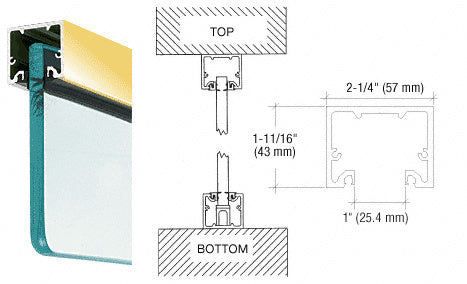

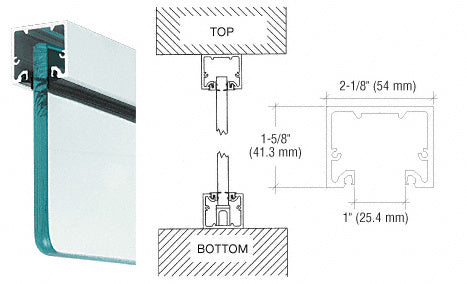

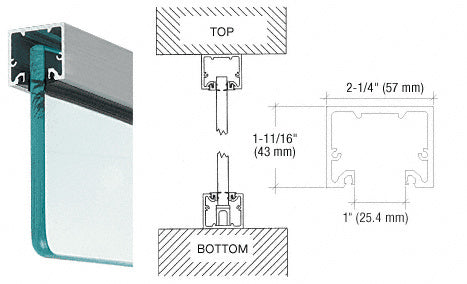

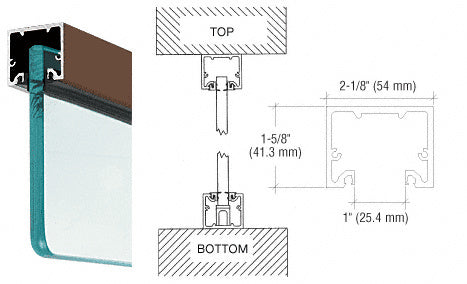

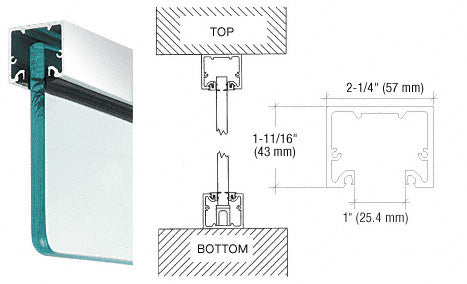

CRL Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/4" Glass - 120" Length

• Matches Width of Door and Sidelite Rails and Channels for 3/8" or 1/2" (10 or 12 mm) and 5/8" or 3/4" (16 and 19 mm) Glass
• Use Monolithic Tempered Glass
• Matches the Width of Door and Sidelite Rails
• Use Monolithic Tempered Glass
• Accepts Roll-In Glazing Gasket, Top Pivot Block, and Snap-In Filler Strip
• Ready-to-Ship Models From CRL Inventory
• Available in Stock Lengths, Fabricated Headers, or Header with Side Pockets for 'Lift and Drop' Panel Installation

This Aluminum Extrusion was developed with three uses in mind:

(1) As a U-Channel that would be the same width as our Sidelite Rails and Door Rails;

(2) As a Narrow Header that is the same width as our Sidelite Rails and Door Rails, and will accept a Top Free-Swinging Pivot to secure the top of the doors;

(3) As an Even Sight Line System, accomplished by first securing the fabricated Narrow Header to the top of the opening, then securing the Sidelite Rail to the Narrow Header with the 1/4" (6 mm) Header Saddle. All drilling, tapping, and fabrication can be done at your request during manufacturing to save time while installing.

Our policy for Quick Pick products is as follows: These products are stocked in our centralized service center, and upon your order will be shipped on our next re-supply truck to your regional CRL service center. Re-supply trucks ship every week, so if your regional service center does not have stock of the product you require, your order can be filled in just a few days.

You can check the stock availability of any CRL product when you click on the box above marked "CHECK STOCK AVAILABILITY".
