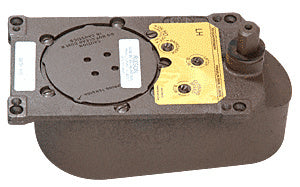

Rixson® 27 Series Left Hand 3/4" Offset 90º Selective Hold Open Floor Mounted Closer Body Only

• For Exterior or Interior Doors Weighing Up to 450 Lbs. (204 kg) and 48" (1.22 m) Wide
• Selective On or Off Hold Open
• Built-in Positive Dead Stop

This Rixson® Model 27 Offset Floor Mounted Door Closer provides the best mechanical means of controlling a door. The weight of the door is supported by the bottom arm, which is directly connected to the floor closer spindle. The direct connection between the bottom arm and the floor closer spindle creates a tremendous increase in closing efficiency compared to surface or overhead concealed closers. This closer is capable of supporting exterior or interior doors weighing up to 450 lbs. (204 kg) and 48" (1.22 m) Wide.

Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments.

NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. If you need Rixson® products please contact our Technical Sales Department for assistance.

Optional accessories that may be needed:
253000 Floor Closer Cement Case 274750LH Closer Cover
252050LH Bottom Offset Arm R180 Top Offset Pivot M19LH Intermediate Offset Pivots.

Additional finishes and accessories are available upon request for quotation.
