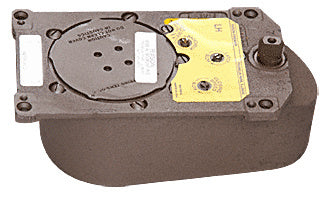

Rixson® 328 Series Center-Hung Left Hand 90º Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings
Roll over image to zoom in Click on image to zoom
Rixson® 328 Series Center-Hung Left Hand 90º Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings

Rixson® 328 Series Center-Hung Left Hand 90º Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings

CRLSKU: 32890SH0LHB0DY
Price:
$1,648.84
 More payment options

Description

  • Tapered Spindle Design Intended for use with Patch Fittings
  • For Exterior or Interior Doors Weighing Up to 325 Lbs. (147 kg) and 42" (1.07 m) Wide
  • Selective On or Off Hold Open

This Rixson® Model 328 Center-Hung Floor Mounted Door Closer provides the best mechanical means of controlling a door. This model is specifically designed to be used with the tapered spindle insert used for patch fittings. This closer is capable of supporting exterior or interior doors weighing up to 325 lbs. (147 kg) and 42" (1.07 m) wide.

Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and back check adjustments.

Optional accessories that may be needed are:
  • 253000 Floor Closer Cement Case
  • 284720LH Closer Cover
    Additional finishes and accessories are available upon request for quotation.

Specifications

Adjustable Hydraulic Backcheck Yes
Body Height (Inches) 4-1/16 in. (103.2 mm)
Body Length (Inches) 11-1/8 in. (282.6 mm)
Body Width (Inches) 5-7/8 in. (149.2 mm)
Brand Rixson
Built In Positive Dead Stop Yes
Certification ANSI 117.1
Closer Body Only Yes
Closer Type Floor Closer
Door Height (Inches) 96 in. (2438.4 mm)
Door Opening 90
Handing Left Hand
Hold Open 90
Independent Closing and Latching Valves Yes
Interior Or Exterior Doors Yes
Maximum Door Width - Exterior 38 in. (965.2 mm)
Maximum Door Width - Interior 38 in. (965.2 mm)
Maximum Weight Center Hung 325 lbs. (147.4 kg)
Non Stocked Parts and Acessories Special Order Yes
Patch Fitting Usage Yes
Recommended Door Type Patch Fittings
Selective Hold Open Yes
Series 328
Similar BTS75VBF90HO, J993HOD, J904HOD
Tapered Spindle Design Yes
UL Listed Yes

Downlodable Documents

Templates

Template CH20500 RIXSON 328.pdf
